Overview
The rectifier transformer converts the grid power supply into a rectifying device, which is widely used in frequency conversion, electrochemical electrolysis, traction, transmission, direct current transmission, electroplating, charging, excitation, electrostatic precipitator and general industrial rectification power supply.

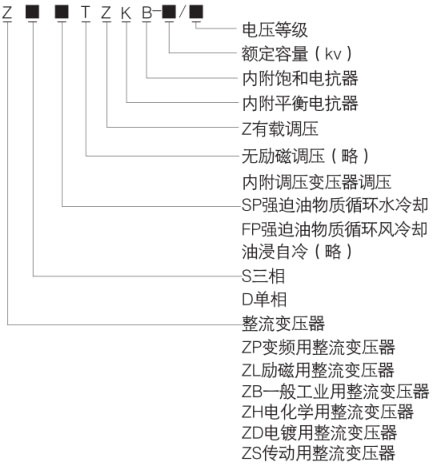

Model Meaning
Instructions for Order
1, Product model, name and wiring method of rectifier circuit (equivalent phase number).
2, High and low voltage rated voltage
3, Pressure regulation method
4, Cooling method
5, Rectification parameters: DC voltage and DC current
6, The connection group label
7, Product use and load characteristics
8. When using a six-phase double-reverse star rectification circuit, it is necessary to propose a control angle or a percentage.
